CNC Router Kompas H3000BIGT

Code: H3000BIGT
Sale
Brand: Cau Cau
10 900 € –18 %

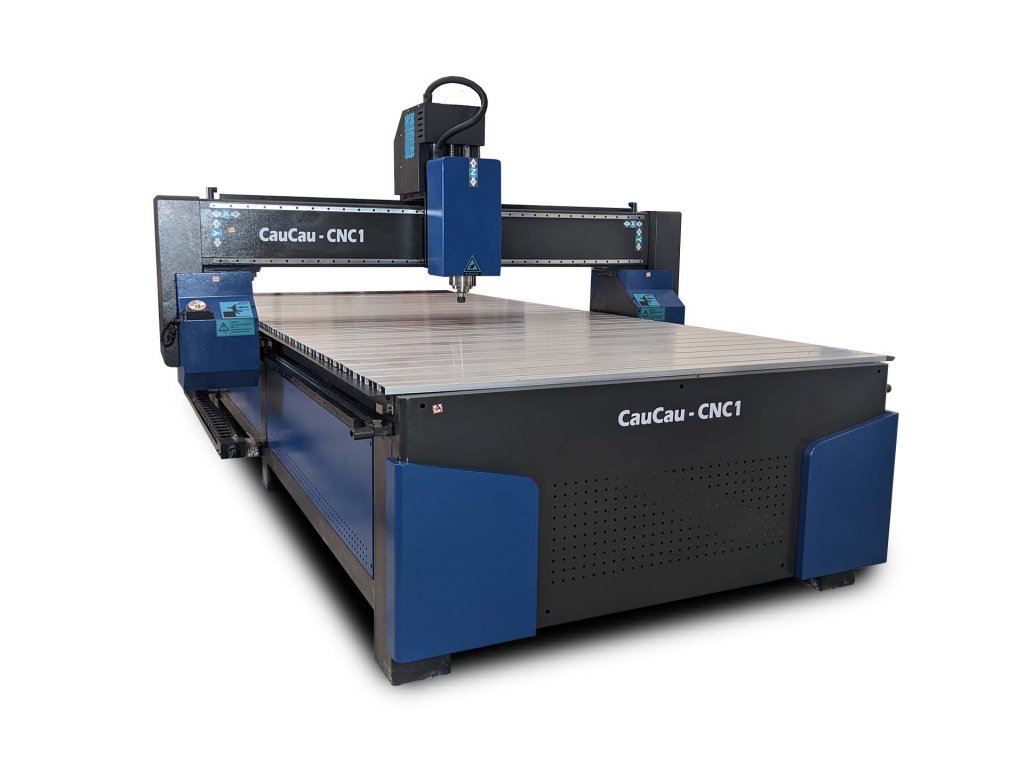

CNC Router H3000BIG Vacuum 020
10 900 € –18 % 8 900 € 10 680 € incl. VAT
In stock (2 pcs)
Computer
CAD/CAM Software
4th rotary axis
Extraction
ATC ?
Front T-Slot Table ?
Delivery offer
  • Work space: 1500 x 3000 x 200 mm
  • Maximum speed: 15000 mm/min
  • Accuracy: 0.03 mm
  • Spindle: 3500W High frequency asynchronous water cooled
  • Spindle speed: 6000 - 24000 rpm/min
  • Spindle chuck: ER20 (1-13 mm)
  • Control software: RichAuto

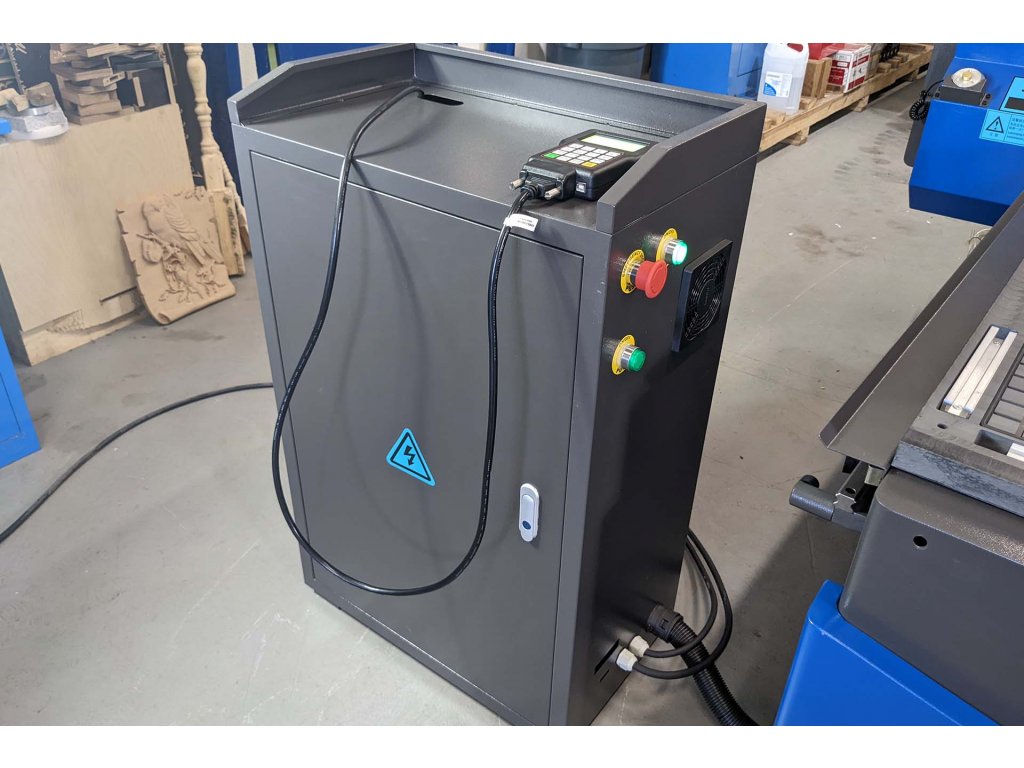

  • Control electronics: Profi6 RichAuto
  • Sensors: Yes induction

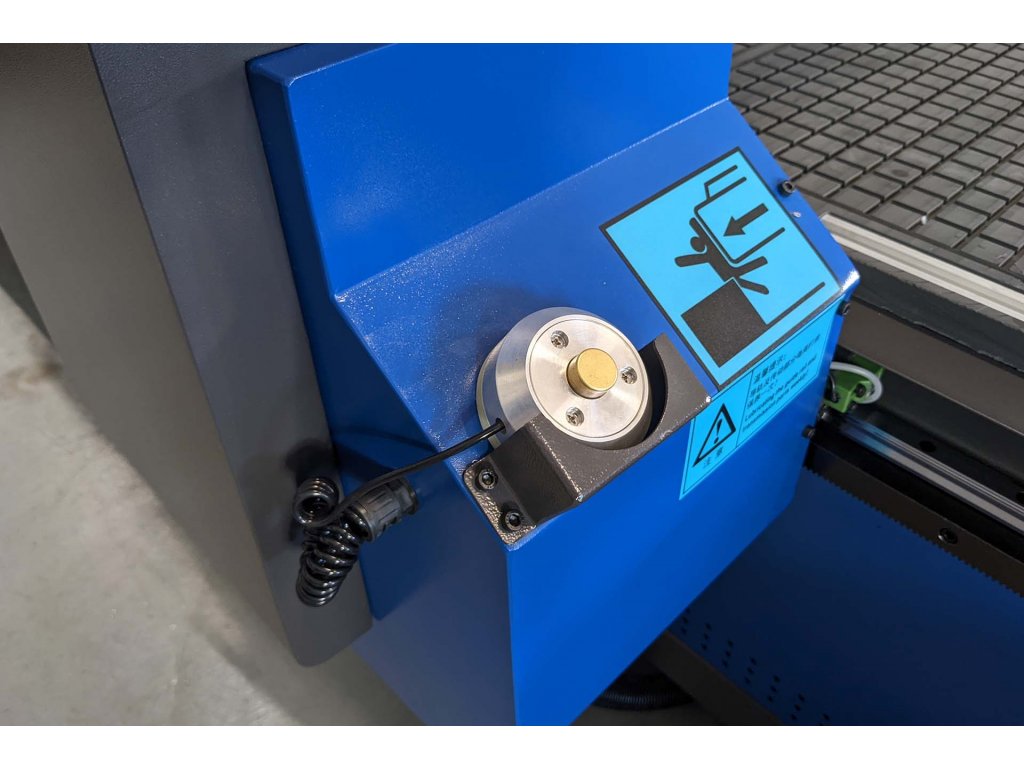

  • Auto tool zero probe: Yes
  • Lubrication: Central manual

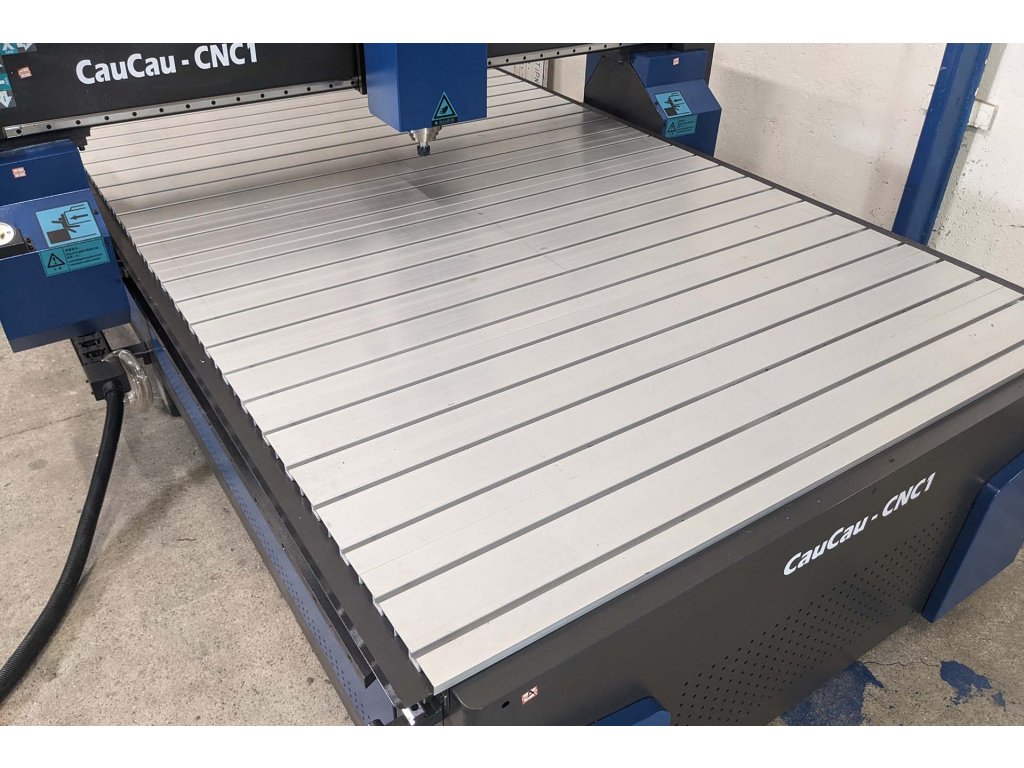

  • Table: T-slot
  • Recovery function: Yes
  • Construction: Welded metal
  • Drive: Stepper Motors Nema34
  • Rails X/Y/Z: Taiwan HIWIN 20mm
  • Transmmission X/Y/Z: Helical racks + Ball screw
  • Dimensions: 2250 x 3600 x 1700 mm
  • Set of tools: Yes 10pcs
  • Training: Yes
  • Support: Phone/Online
  • Warranty: Yes

Detailed information

Product detailed description

CNC machine assembled and tested in the EU!

CNC Router suitable for processing large material sizes. The whole machine is designed for demanding operation in industry. High quality HIWIN 25mm linear guides on all axes with ball screw and helical rack for highest accuracy. The machine is equipped with 3500W spindle with maximum speed of 24000 rpm. Inductive limit switches. The machine is controlled by an integrated computer with its own memory, which ensures stable and easy operation. The machine can be customized to your requirements.

We are a machine manufacturer, we will be happy to adapt the machine to your requirements, or we can make a custom-made machine for you.

The CNC machine includes:

  • CNC Machine Kompas H3000BIGT
  • 3500W Spindle water cooled

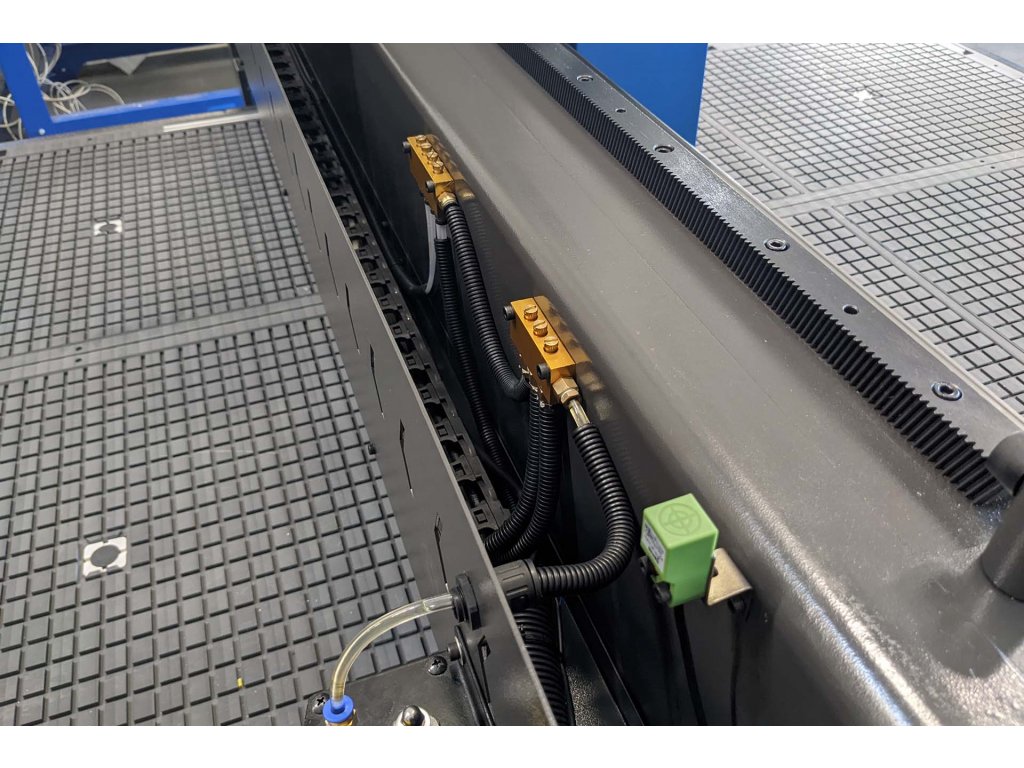

  • Inductive sensors
  • Tool length sensor
  • Manual central lubrication
  • T-slot table
  • 10 pcs of tools
  • Collet set ER20
  • Wrenches
  • RichAuto System
  • Basic training
  • Support
  • Warranty

The machine is suitable for processing:

  • Wood, Plywood, MDF
  • Plastic, Plexiglas, PVC
  • Composite, PCB, Laminate
  • Foam, Foil, Leather
  • Rubber, Cardboard
  • Gold, Silver, Bronze
  • Aluminium, Brass, Copper
  • Stone, Marble









All videos you can watch here: YouTube




In case of any questions, do not hesitate to contact us.



Miroslav Dudas

+421 915 451 978

info@cnc1.eu



Jan Dudas

+421 905 248 550

cnc1@cnc1.eu



Additional parameters

Category: CNC Routers
Weight: 1000 kg
